A573 Strukturni jekleni h žarek
Jekleni tramovi ameriškega standardnega oddelka H so na voljo v treh glavnih ocenah kakovosti A36, A572 in A992. Na primer, material A36 in material A572 predstavljata ogljikovo konstrukcijsko jeklo, A992 pa je jeklo z nizkim zlitinom.
A573 h shaped beam has three grades, respectively: 58, 65, 70, h shaped iron beam is divided into hot-rolled h shaped steel beam and welded h type beam (H) two kinds of hot-rolled material h beam is divided into wide flange steel beam h (HW) h profile steel (HM) and narrow flange h beam section (HN) Tri vrste H - jekleni žarek.
a573 h snop material kemična sestava
| A573 GR 58 | |
| Carbon max | 0.23% |
| Mangan | 0.60-0.90% |
| Fosfor max | 0.030% |
| Žveplo max | 0.030% |
| Silicij | 0.10-0.35% |
| A573 GR 65 | |
| Ogljik, manj kot 1/2 "debel | 0.24% |
| CARBON, >1/2 "-1 1/2" debela | 0.26% |
| Mangan | 0.85-1.20% |
| Fosfor max | 0.030% |
| Žveplo max | 0.030% |
| Silicij | 0.15-0.40% |
| A573 GR 70 | |
| Ogljik, manj kot 1/2 "debel | 0.27% |
| CARBON, >1/2 "-1 1/2" debela | 0.28% |
| Mangan | 0.85-1.20% |
| Fosfor max | 0.030% |
| Žveplo max | 0.030% |
| Silicij | 0.15-0.40% |
A573 h Mehanska lastnost kovinskega žarka
| Razred | Točka donosa (KSI) | Natezna trdnost (KSI) | Min . 8 "raztezanje % |
| 58 | 32 | 58-71 | 21 |
| 65 | 35 | 65-77 | 20 |
| 70 | 42 | 70-90 | 18 |
Strukturna velikost jeklenega žarka
| Tip | Širina odseka (mm) | Globina odseka (mm) | Splet (mm) | Prirobnica (mm) | Masa na meter (kg/m) |
| HEA120 | 120 | 114 | 5 | 8 | 20.4 |
| HEA140 | 140 | 133 | 5.5 | 8.5 | 25.3 |
| HEA160 | 160 | 152 | 6 | 9 | 31.2 |
| HEA180 | 180 | 171 | 6 | 9.5 | 36.4 |
| HEA200 | 200 | 190 | 6.5 | 10 | 43.4 |
| HEA220 | 220 | 210 | 7 | 11 | 51.8 |
| HEA240 | 240 | 224 | 6.5 | 9 | 48.6 |
| HEA260 | 260 | 250 | 7.5 | 12.5 | 69.9 |
| HEA280 | 280 | 270 | 8 | 13 | 78.3 |
| HEA300 | 300 | 290 | 8.5 | 14 | 90.5 |
| HEA320 | 300 | 310 | 9 | 15.5 | 100 |
| HEA340 | 300 | 330 | 9.5 | 16.5 | 107.6 |
| HEA360 | 300 | 350 | 10 | 17.5 | 112 |
| HEA400 | 300 | 390 | 11 | 19 | 125 |
| HEA450 | 300 | 440 | 11.5 | 21 | 140 |
| HEB120 | 120 | 120 | 6.5 | 11 | 27.4 |
| HEB140 | 140 | 140 | 7 | 12 | 34.5 |
| HEB160 | 160 | 160 | 8 | 13 | 43.7 |
| HEB180 | 180 | 180 | 8.5 | 14 | 52.5 |
| HEB200 | 200 | 200 | 9 | 15 | 62.8 |
| Heb220 | 220 | 220 | 9.5 | 16 | 73.3 |
| Heb240 | 240 | 240 | 10 | 17 | 85.3 |
| Heb 260 | 260 | 260 | 10 | 17.5 | 95.3 |
| Heb 280 | 280 | 280 | 10.5 | 18 | 105.6 |
| HEB300 | 300 | 300 | 11 | 19 | 119.9 |
| Heb320 | 300 | 320 | 11.5 | 20.5 | 130.2 |
| HEB340 | 300 | 340 | 12 | 21.5 | 134 |
| Heb360 | 300 | 360 | 12.5 | 22.5 | 142 |
| HEB400 | 300 | 400 | 13.5 | 24 | 155 |
| Hem100 | 106 | 120 | 12 | 20 | 42.8 |
| Hem120 | 126 | 140 | 12.5 | 21 | 53.4 |
| Hem140 | 146 | 160 | 13 | 22 | 64.8 |
| Hem160 | 166 | 180 | 14 | 23 | 78.1 |
| Hem180 | 186 | 200 | 14.5 | 24 | 91.1 |
| Hem200 | 206 | 220 | 15 | 25 | 105.6 |
| Hem220 | 226 | 240 | 15.5 | 26 | 119.9 |
| Hem240 | 248 | 270 | 18 | 23 | 160.9 |
| Hem260 | 268 | 290 | 18 | 32.5 | 176.3 |
| Hem280 | 288 | 310 | 18.5 | 33 | 193.7 |
| Hem300 | 310 | 340 | 21 | 39 | 244 |
| Hem320 | 309 | 359 | 21 | 40 | 251.1 |
| Hem340 | 309 | 377 | 21 | 40 | 248 |
| Hem360 | 308 | 395 | 21 | 40 | 250 |
| Hem400 | 307 | 432 | 21 | 40 | 256 |
| Hem450 | 307 | 478 | 12 | 40 | 263 |

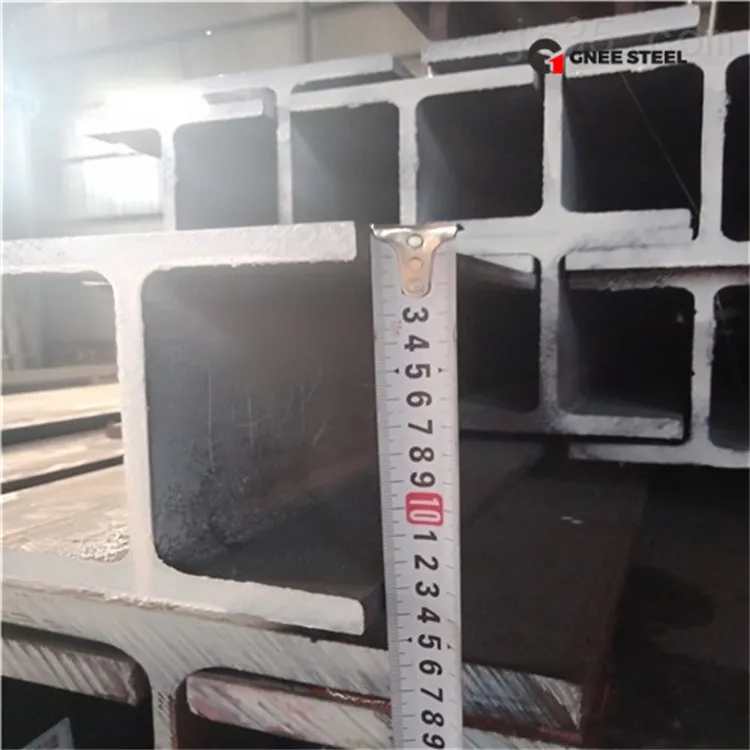

H Slika izdelka jeklenega stolpca
Fotografija skupine Gnee Group
Gnee Group Stranka obišče
Gnee Group sodeluje na tujih jeklenih razstavah
Na zalogi imamo dovolj konstrukcijskega jekla A573, na zalogi pa ga lahko prilagodimo tudi glede na vaše potrebe.
Priljubljena oznake: A573 Strukturni jekleni hmelj, Kitajska A573 Proizvajalci konstrukcijskih jeklo H, dobavitelji, tovarna
